Specification For Square Mount Surface COB Led Down Light |
| Modle | ABC-MTHD-10W | ABC-MTHD-20W | ABC-MTHD-30W | ABC-MTHD-40W |
| Wattage | 10W | 20W | 30W | 40W |
| Lumen | 1000lm | 2000lm | 3000lm | 4000lm |
| Size | Ø110*H120MM | Ø130*H150MM | Ø170*H180MM | Ø195*H195MM |
| Chip Brand | Epistar or Bridgelux chip | |||
| CCT | Warm white( 2700-3500K ) Nature White(4000-4500K ) Pure white( 5000-5500K ) Cool White(6000-6500K ) | |||
| Voltage | AC85-265V | |||
| Beam Angle | 120° | |||
| Power factor | PF>0.95 | |||
| CRI | CRI>70Ra CRI>80Ra CRI>85Ra ( For Option ) | |||
| Material | Aluminum ( White + Black boday ) | |||
| Cover | Tempered Glass | |||
| Certificate | CE,RoHS,LVD,EMC,TUV,SAA | |||
| Warranty | 2 years warranty or 3 years warranty ( For Option ) | |||
| IP Rating | IP44 | |||
| G.W. | 0.8KG | 1.2KG | 1.5KG | 2.0KG |
|
Details For Square Mount Surface COB Led Down Light |
1. High quality aluminum materials, multiple processes to produce.
2. High temperature resistance, corrosion resistance, anti-rust.
3. Fashionable visual enjoyment.

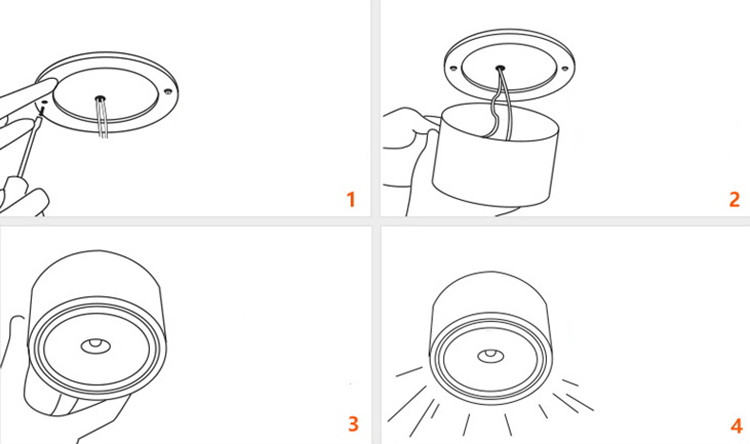

4. Attractive simple design and quick installation is classically demonstrated.
5. Low power consumption and Low heat dissipation.
6. Tremendous energy saving and eco-friendly.
|
Application For Square Mount Surface COB Led Down Light |
1.Widely used in Shopping mall,Retail shops,Museum,Hotel,Cinema,Gallery,Restaurant,Meeting room,Office,Living Room,
training rooms, shopping malls, exhibition halls, supermarkets, hotels, and other lighting places.
|
Shipping For Square Mount Surface COB Led Down Light |
1.Delivery Time: For Sample orde:within 3days;
For 100~500pcs: 3-5 days
For 500~1000pcs:5-7days .
2.Shipping Way :By UPS/DHL/FEDEX/TNT: 3~ 5 days
By air 5-7days
By sea takes 20-25days
