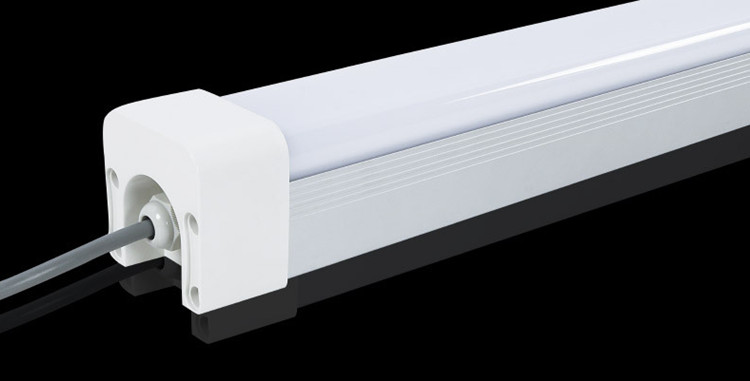

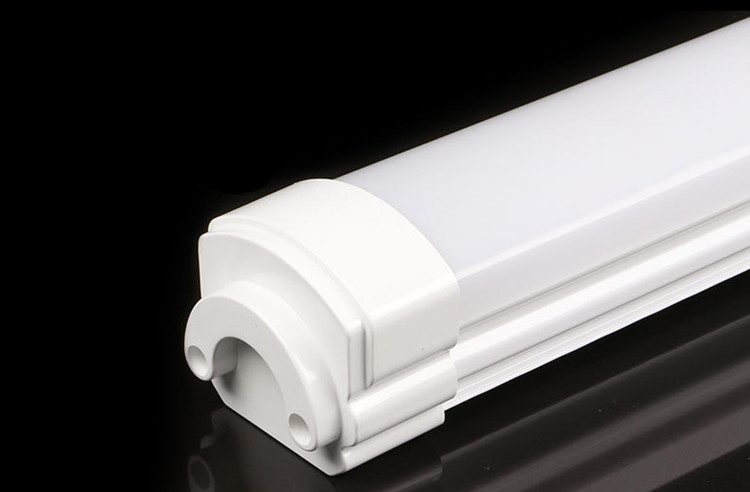

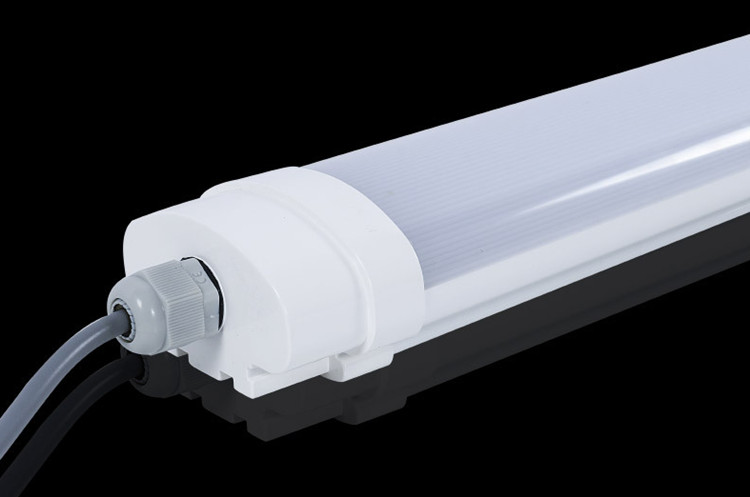

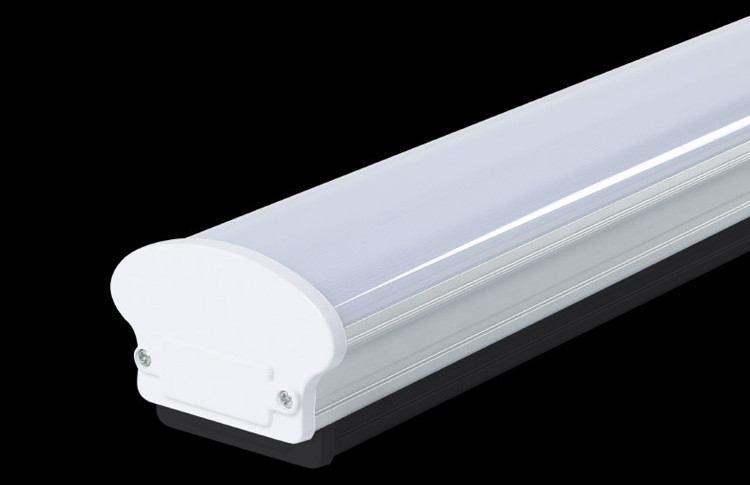

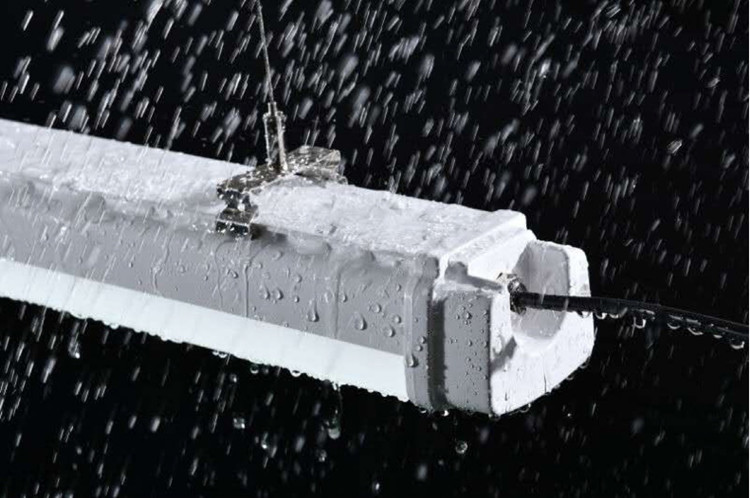

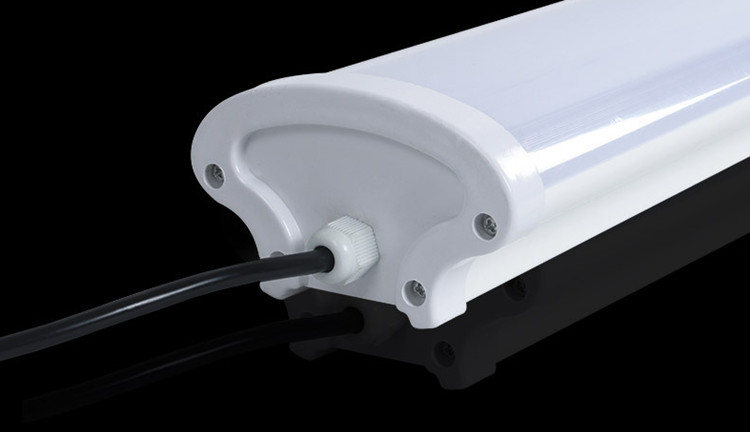

Specification For Waterproof IP65 Linkable Tri-proof Led Tube Light |
| Modle | ABC-SF-30W | ABC-SF-60W | ||
| Wattage | 30W | 60W | ||
| Lumen | 3000lm | 6000lm | ||
| Size | L600*W90*H74MM | L1200*W90*74MM | ||
| Chip Brand | Epistar or Bridgelux chip | |||
| CCT | Warm White(2700-3500K) Nature White(4000-4500K) Pure White(5000-5500K) Cool White(6000-6500K) | |||
| Voltage | AC85-265V | |||
| Beam Angle | 120° | |||
| Power factor | PF>0.95 | |||
| CRI | CRI>70Ra CRI>80Ra CRI>85Ra ( For Option ) | |||
| Material | Aluminum + PC | |||
| Cover | Frost or clear cover | |||
| Certificate | CE,RoHS,LVD,EMC,TUV,SAA | |||
| Warranty | 3 years warranty | |||
| IP Rating | IP65 | |||
| N.W. | 1.4KG | 2.5KG | ||
|
LED Tube Light VS Traditional Tube Light |
| 8W led tube | 800Lm | = | traditional 25W tube | = | 16W CFL bulb |
| 12W led tube | 1210Lm | = | traditional 30W tube | = | 20W CFL bulb |
| 18w led tube | 1850Lm | = | traditional 45W tube | = | 30W CFL bulb |
| 22w led tube | 2250Lm | = | traditional 60W tube | = | 40W CFL bulb |
| 24w led tube | 2580Lm | = | traditional 60W tube | = | 50W CFL bulb |
|

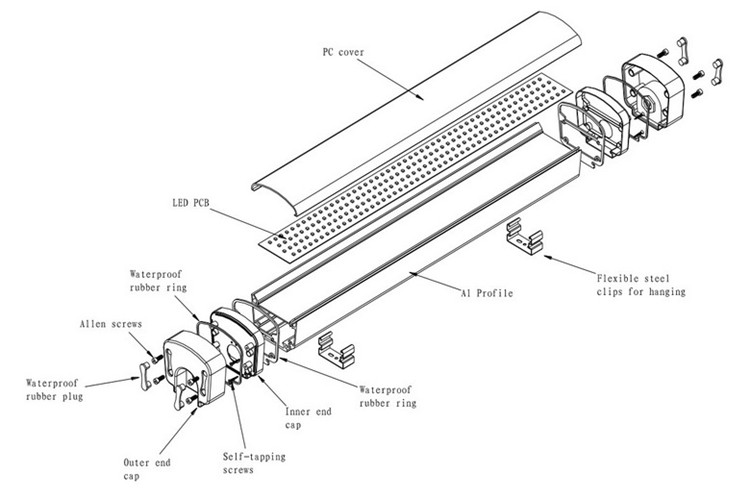

Features For Rotable T6 Led Tube Light 1149mm |
1. Aluminum Base: Use high-end aluminum profile for better heat dissipation
2. Driver: high effiency, PF: >0.95, 3years warranty,light start no delay,no stroboscopic,ensure T8 Led Tube Light a long lifespan.
3. Lamp body:high heat dissipation,low thermal resistance,long life span,resistance to voltage ect
4. SMD2835 Chip: Epistar 2835smd, 0.2w/pcs, more brighter and with good heat dissipation.
5. PC cover:High-end PC cover with nice light transmittance(>85%).Transparent PC and milk PC are optional
|
Applications For Waterproof IP65 Linkable Tri-proof Led Tube Light |
1. Hotels,Conference,Meeting rooms, Schools,hospital
2. Factories,Offices,Commercial Complexes
3. Residential, Institution Buildings
4. Public buildings, hosing and the underground garage
5. Frozen ark of the supermarket (no pollution to food)
|

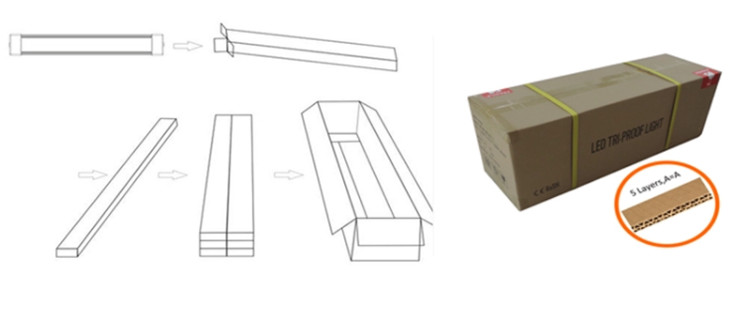

Shipping For Waterproof IP65 Linkable Tri-proof Led Tube Light |
1.Delivery Time: For Sample orde:within 3days;
For 100~500pcs: 3-5 days
For 500~1000pcs:5-7days .
2.Shipping Way : By UPS/DHL/FEDEX/TNT: 3~ 5 days
By air 5-7days except
By sea takes one month
